Emission Profiles modeled with CHERAB

from pprint import pprint

import matplotlib.pyplot as plt
import numpy as np
from matplotlib import ticker
from raysect.optical import Point3D, Spectrum, Vector3D, World

from cherab.phix.plasma import import_plasma
from cherab.phix.tools.raytransfer import import_phix_rtc
from cherab.phix.tools.visualize import show_phix_profile, show_phix_profiles

plt.rcParams["figure.dpi"] = 150

world = World()
plasma, eq = import_plasma(world)
rtc = import_phix_rtc(world, equilibrium=eq)
model = [i for i in plasma.models]
pprint(model)

loading plasma (data from: phix10)...
[<PlasmaModel - Bremsstrahlung>,
 <ExcitationLine: element=hydrogen, charge=0, transition=(3, 2)>,
 <ExcitationLine: element=hydrogen, charge=0, transition=(4, 2)>,
 <ExcitationLine: element=hydrogen, charge=0, transition=(5, 2)>,
 <ExcitationLine: element=hydrogen, charge=0, transition=(6, 2)>,
 <RecombinationLine: element=hydrogen, charge=0, transition=(3, 2)>,
 <RecombinationLine: element=hydrogen, charge=0, transition=(4, 2)>,
 <RecombinationLine: element=hydrogen, charge=0, transition=(5, 2)>,
 <RecombinationLine: element=hydrogen, charge=0, transition=(6, 2)>]

# set sample paramaters
dr = rtc.material.dr
dz = rtc.material.dz
nr = rtc.material.grid_shape[0]
nz = rtc.material.grid_shape[2]
rmin = rtc.material.rmin
zmin = rtc.transform[2, 3]
rmax = rmin + dr * nr
zmax = zmin + dz * nz

xrange = np.linspace(rmin, rmax, nr)
yrange = np.linspace(zmin, zmax, nz)
direction = Vector3D(0, 1, 0)
# H-balmar emission line
Halpha = (655.6, 656.8)
Hbeta = (485.6, 486.5)
Hgamma = (433.6, 434.4)

Bremsstrahlung emission

Calculate spectral radiance at \(r-z\) plane.

# calculate spectral radiance
spectrum_bins = 500
min_wavelength = 375  # [nm]
max_wavelength = 780
radiance = np.zeros((nr, nz))
spectral_radiance = np.zeros((spectrum_bins, nr, nz))

for i, x in enumerate(xrange):
    for j, y in enumerate(yrange):
        emission = model[0].emission(
            Point3D(x, 0.0, y), direction, Spectrum(min_wavelength, max_wavelength, spectrum_bins)
        )
        spectral_radiance[:, i, j] = emission.samples
        radiance[i, j] = emission.total()

# mask values under 0
radiance = np.ma.masked_where(radiance <= 0, radiance)
spectral_radiance = np.ma.masked_where(spectral_radiance <= 0, spectral_radiance)

show spacial profile in \(r-z\) plane and spectrum at \(r=0.33\) line.

fig, axes = plt.subplots(1, 2, constrained_layout=True, figsize=(10, 4))

# show profile
show_phix_profile(axes[0], radiance, cmap="Reds", rtc=rtc, plot_contour=False)
axes[0].set_title("Profile in $r-z$ plane", pad=15)
fmt = ticker.ScalarFormatter(useMathText=True)
fmt.set_powerlimits((0, 0))
cbar0 = plt.colorbar(axes[0].collections[0], ax=axes[0], format=fmt, pad=0)
cbar0.set_label("radiance per meter [W/m$^3$/str]")
cbar0.ax.yaxis.set_offset_position("left")
axes[0].set_xlabel("$R$ [m]")
axes[0].set_ylabel("$Z$ [m]")

# show spectrum
r0_index = 46  # index of magnetix axis R in xrange
pc = axes[1].pcolormesh(
    emission.wavelengths,
    yrange,
    spectral_radiance[:, r0_index, :].T,
    cmap="Reds",
)
fmt = ticker.ScalarFormatter(useMathText=True)
fmt.set_powerlimits((0, 0))
cbar1 = plt.colorbar(
    pc, label="Spectral radiance per meter [W/m$^3$/str/nm]", ax=axes[1], format=fmt, pad=0
)
cbar1.ax.yaxis.set_offset_position("left")
axes[1].set_xlabel("wavelength [nm]")
axes[1].set_ylabel("$Z $[m]")
axes[1].set_title(f"Spectrum along the line $r={xrange[r0_index]:.2f}$ [m]", pad=15)

fig.suptitle("Bremsstrahlung emission", x=0.55)

Text(0.55, 0.98, 'Bremsstrahlung emission')

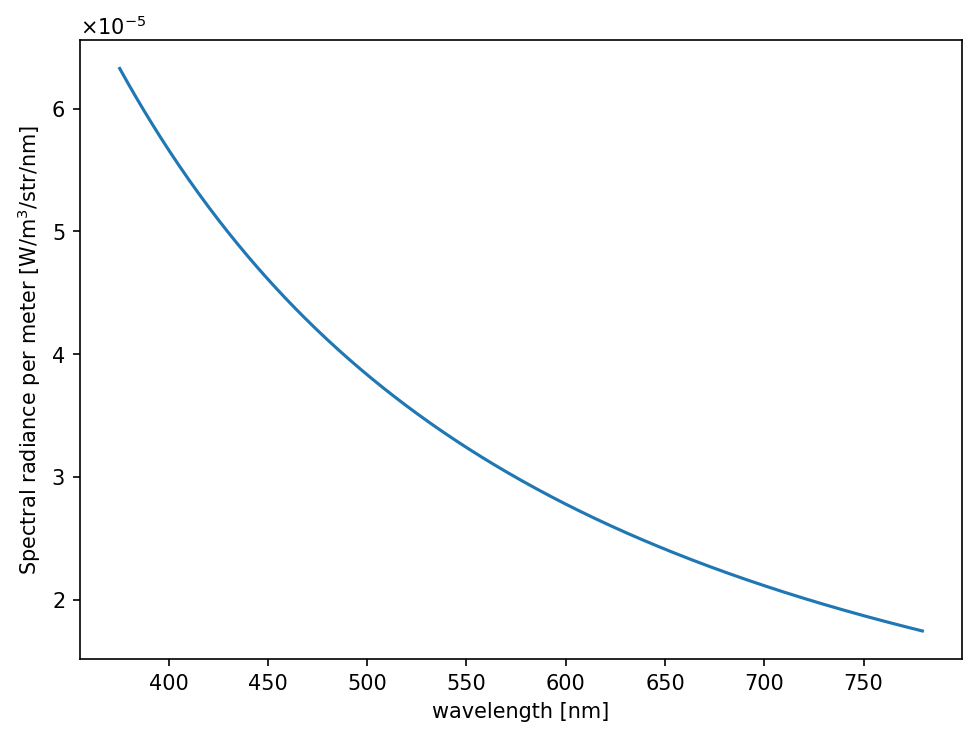

Plot 1-D bremsstrahlung spectrum at \((r, z) = (0.34, 0)\) which is magnetic axis position.

# spectral_radiance index at (r, z) = magnetic axis
idx = np.abs(xrange - eq.magnetic_axis.x).argmin()
idy = np.where(yrange == 0)[0][0]

# plot 1-d spectrum
fig, ax = plt.subplots(1, constrained_layout=True)
ax.plot(emission.wavelengths, spectral_radiance[:, idx, idy])
ax.set_xlabel("wavelength [nm]")
ax.set_ylabel("Spectral radiance per meter [W/m$^3$/str/nm]")
ax.yaxis.set_major_formatter(ticker.ScalarFormatter(useMathText=True))

Excitation emission of hydrogen balmar-series

spectrum_bins = 50
radiance = np.zeros((3, nr, nz))
spectral_radiance = np.zeros((3, spectrum_bins, nr, nz))  # number of Hydrogen lines (ax=0)
for i, x in enumerate(xrange):
    for j, y in enumerate(yrange):
        for k, waverange in enumerate([Halpha, Hbeta, Hgamma]):
            emission = model[k + 1].emission(
                Point3D(x, 0.0, y), direction, Spectrum(waverange[0], waverange[1], spectrum_bins)
            )
            spectral_radiance[k, :, i, j] = emission.samples
            radiance[k, i, j] = emission.total()

# mask radiance values under 0
radiance = np.ma.masked_where(radiance <= 0, radiance)

fig, grids = show_phix_profiles(
    [radiance[k, :] for k in range(len(radiance[:, 0, 0]))],
    clabel="Radiance per meter [W/m$^3$/str]",
    cmap="Reds",
    rtc=rtc,
    cbar_mode="single",
    plot_mode="scalar",
    axes_pad=0.02,
)
for grid, name in zip(grids, ["$_\\alpha$", "$_\\beta$", "$_\\gamma$"]):
    grid.set_title(f"H{name}")

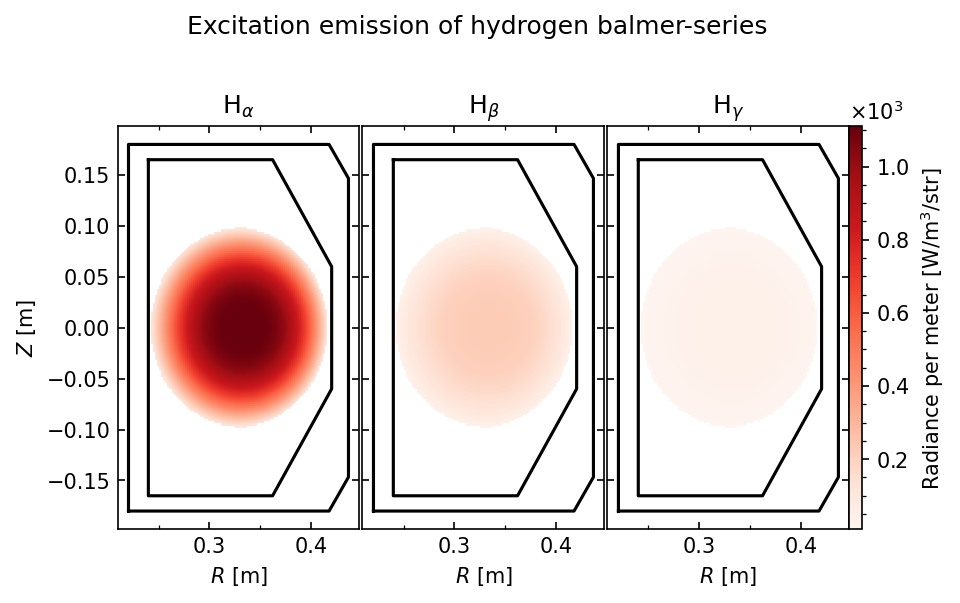

fig.suptitle("Excitation emission of hydrogen balmer-series", y=0.93)

Text(0.5, 0.93, 'Excitation emission of hydrogen balmer-series')

fig, grids = show_phix_profiles(
    [radiance[k, :] for k in range(len(radiance[:, 0, 0]))],
    clabel="Radiance per meter [W/m$^3$/str]",
    cmap="Reds",
    rtc=rtc,
    cbar_mode="each",
    plot_mode="eng",
    axes_pad=0.5,
)
for grid, name in zip(grids, ["$_\\alpha$", "$_\\beta$", "$_\\gamma$"]):
    grid.set_title(f"H{name}")
fig.suptitle("Excitation emission of hydrogen balmer-series", y=0.86)

Text(0.5, 0.86, 'Excitation emission of hydrogen balmer-series')

Recombination emission of hydrogen balmar-series

spectrum_bins = 50
radiance = np.zeros((3, nr, nz))
spectral_radiance = np.zeros((3, spectrum_bins, nr, nz))  # number of Hydrogen lines (ax=0)
for i, x in enumerate(xrange):
    for j, y in enumerate(yrange):
        for k, waverange in enumerate([Halpha, Hbeta, Hgamma]):
            emission = model[k + 5].emission(
                Point3D(x, 0.0, y), direction, Spectrum(waverange[0], waverange[1], spectrum_bins)
            )
            spectral_radiance[k, :, i, j] = emission.samples
            radiance[k, i, j] = emission.total()

# mask radiance values under 0
radiance = np.ma.masked_where(radiance <= 0, radiance)

fig, grids = show_phix_profiles(
    [radiance[k, :] for k in range(3)],
    clabel="Radiance per meter [W/m$^3$/str]",
    cmap="Reds",
    rtc=rtc,
    cbar_mode="single",
)
for grid, name in zip(grids, ["$_\\alpha$", "$_\\beta$", "$_\\gamma$"]):
    grid.set_title(f"H{name}")

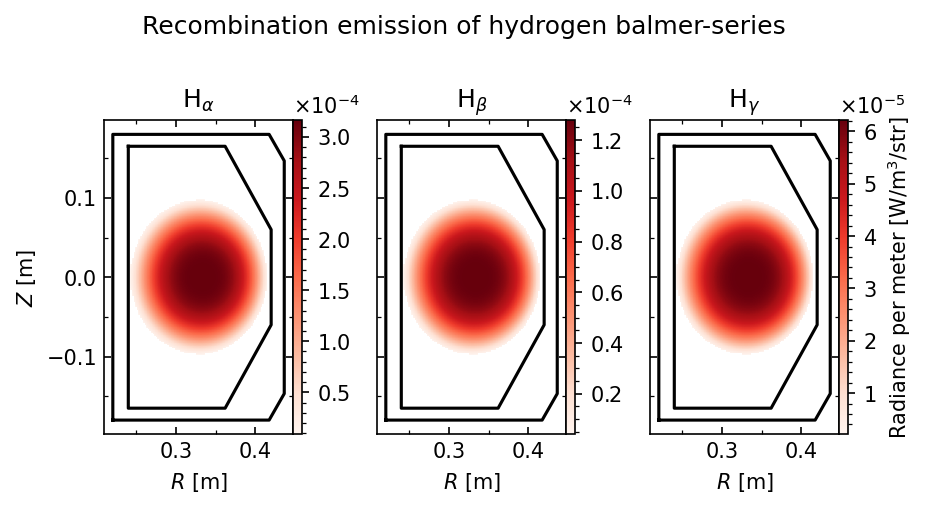

fig.suptitle("Recombination emission of hydrogen balmer-series", y=0.93)

Text(0.5, 0.93, 'Recombination emission of hydrogen balmer-series')

fig, grids = show_phix_profiles(
    [radiance[k, :] for k in range(3)],
    clabel="Radiance per meter [W/m$^3$/str]",
    cmap="Reds",
    rtc=rtc,
    cbar_mode="each",
    axes_pad=0.5,
)
for grid, name in zip(grids, ["$_\\alpha$", "$_\\beta$", "$_\\gamma$"]):
    grid.set_title(f"H{name}")
fig.suptitle("Recombination emission of hydrogen balmer-series", y=0.86)

Text(0.5, 0.86, 'Recombination emission of hydrogen balmer-series')

Spectral Radiance per meter at magnetic axis in hydrogen balmar-series

spectrum_bins = 50
spectral_radiance_e = np.zeros((3, spectrum_bins))
spectral_radiance_r = np.zeros((3, spectrum_bins))
for k, waverange in enumerate([Halpha, Hbeta, Hgamma]):
    emission_e = model[k + 1].emission(
        Point3D(eq.magnetic_axis.x, 0.0, eq.magnetic_axis.y),
        direction,
        Spectrum(waverange[0], waverange[1], spectrum_bins),
    )
    emission_r = model[k + 5].emission(
        Point3D(eq.magnetic_axis.x, 0.0, eq.magnetic_axis.y),
        direction,
        Spectrum(waverange[0], waverange[1], spectrum_bins),
    )
    spectral_radiance_e[k, :] = emission_e.samples
    spectral_radiance_r[k, :] = emission_r.samples

wavelength = np.concatenate(
    [
        np.linspace(*Hgamma, len(spectral_radiance[2])),
        np.linspace(*Hbeta, len(spectral_radiance[1])),
        np.linspace(*Halpha, len(spectral_radiance[0])),
    ]
)
spectrum_ex = np.concatenate([spectral_radiance_e[i, :] for i in [2, 1, 0]])
spectrum_re = np.concatenate([spectral_radiance_r[i, :] for i in [2, 1, 0]])

fig, ax = plt.subplots()
ax.plot(wavelength, spectrum_ex, label="excitation")
# ax.plot(wavelength, spectrum_re, label="recombination")
ax.legend()
ax.set_xlabel("wavelength [nm]")
ax.set_ylabel("Spectral radiance per meter [W/m$^3$/str/nm]")

Text(0, 0.5, 'Spectral radiance per meter [W/m$^3$/str/nm]')

fig, ax = plt.subplots()
# ax.plot(wavelength, spectrum_ex, label="excitation")

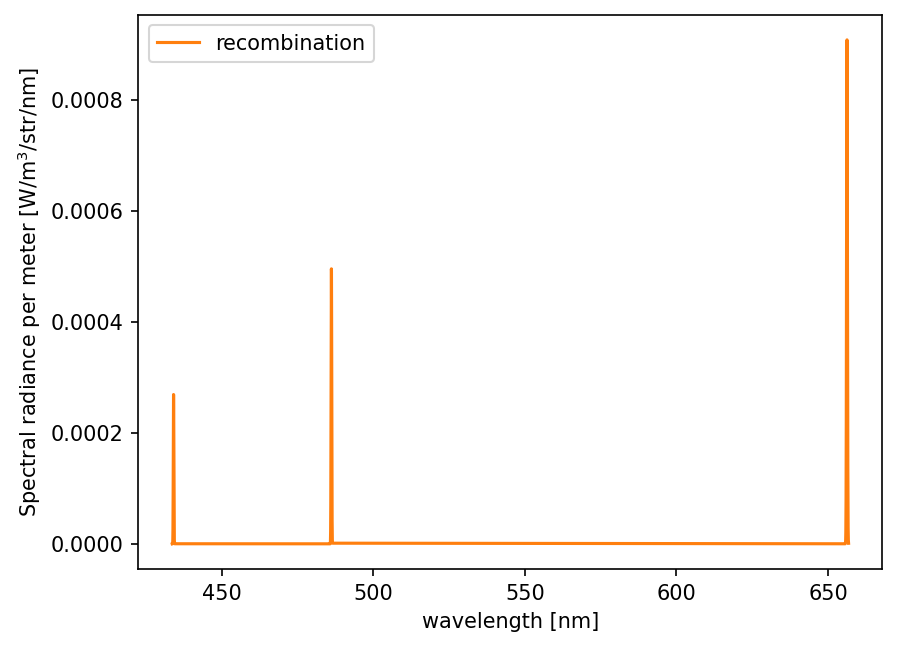

ax.plot(wavelength, spectrum_re, label="recombination", color="C1")
ax.legend()
ax.set_xlabel("wavelength [nm]")
ax.set_ylabel("Spectral radiance per meter [W/m$^3$/str/nm]")

Text(0, 0.5, 'Spectral radiance per meter [W/m$^3$/str/nm]')
