Ray-tracing simulation of fast camera#

[ ]:

import numpy as np
from matplotlib import pyplot as plt
from mpl_toolkits.axes_grid1 import ImageGrid
from raysect.optical import World
from raysect.optical.observer import PowerPipeline2D, RGBAdaptiveSampler2D, RGBPipeline2D

from cherab.phix.machine import import_phix_mesh
from cherab.phix.observer import import_phix_camera
from cherab.phix.plasma import import_plasma

Create scene graph#

[ ]:

# scene world
world = World()

# import plasma
plasma, eq = import_plasma(world)

# import phix mesh
mesh = import_phix_mesh(world, reflection=True)

# import phix camera
camera = import_phix_camera(world)

Set up pipelines#

[ ]:

# RGB image and Power pipelines
# NOTE: if you excute the code in .py script, the progress image can be displayed
# when `display_progress = True`.
rgb = RGBPipeline2D(display_unsaturated_fraction=1.0, name="sRGB", display_progress=False)
power = PowerPipeline2D(display_progress=False, name="power")

# set camera's pipeline property
camera.pipelines = [rgb, power]

Set other camera parameters#

[ ]:

# set sampler
sampler = RGBAdaptiveSampler2D(rgb, ratio=10, fraction=0.2, min_samples=10, cutoff=0.05)

camera.frame_sampler = sampler
camera.min_wavelength = 400
camera.max_wavelength = 780
camera.spectral_rays = 1
camera.spectral_bins = 20  # spectrum resolution between 400 - 780 nm in wavelength
camera.per_pixel_samples = 10
camera.lens_samples = 10

Execute Ray-tracing#

[ ]:

plt.ion()
camera.observe()

Save images and power data#

[ ]:

# save images
rgb.save("rgb.png")
power.save("power.png")

# save power array data
np.save("power.npy", power.frame.mean)

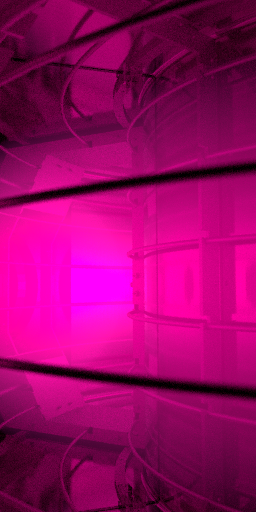

Ray-traced images are shown below:

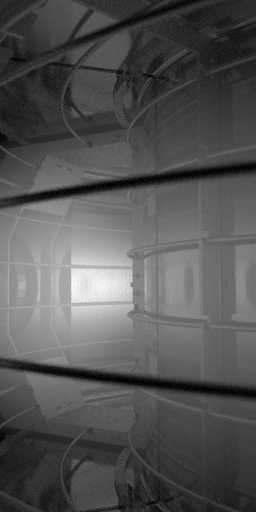

../../_images/power.png — Power monochrome image#

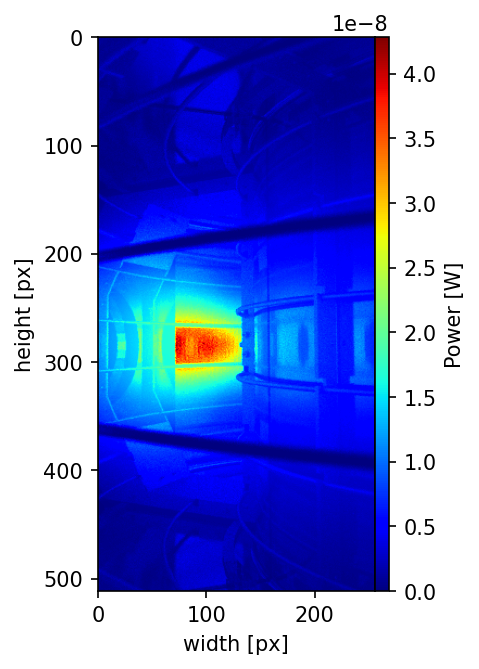

Show calculated power distribution#

[ ]:

fig = plt.figure(dpi=150)
grids = ImageGrid(fig, 111, (1, 1), axes_pad=0, cbar_mode="each")
mappable = grids[0].imshow(power.frame.mean.T, cmap="jet")
grids[0].set_xlabel("width [px]")
grids[0].set_ylabel("height [px]")
cbar = plt.colorbar(mappable, cax=grids.cbar_axes[0])
cbar.set_label("Power [W]")

Note

demos/synthetic_calculation.py is the script file having the same workflow as the above codes.
